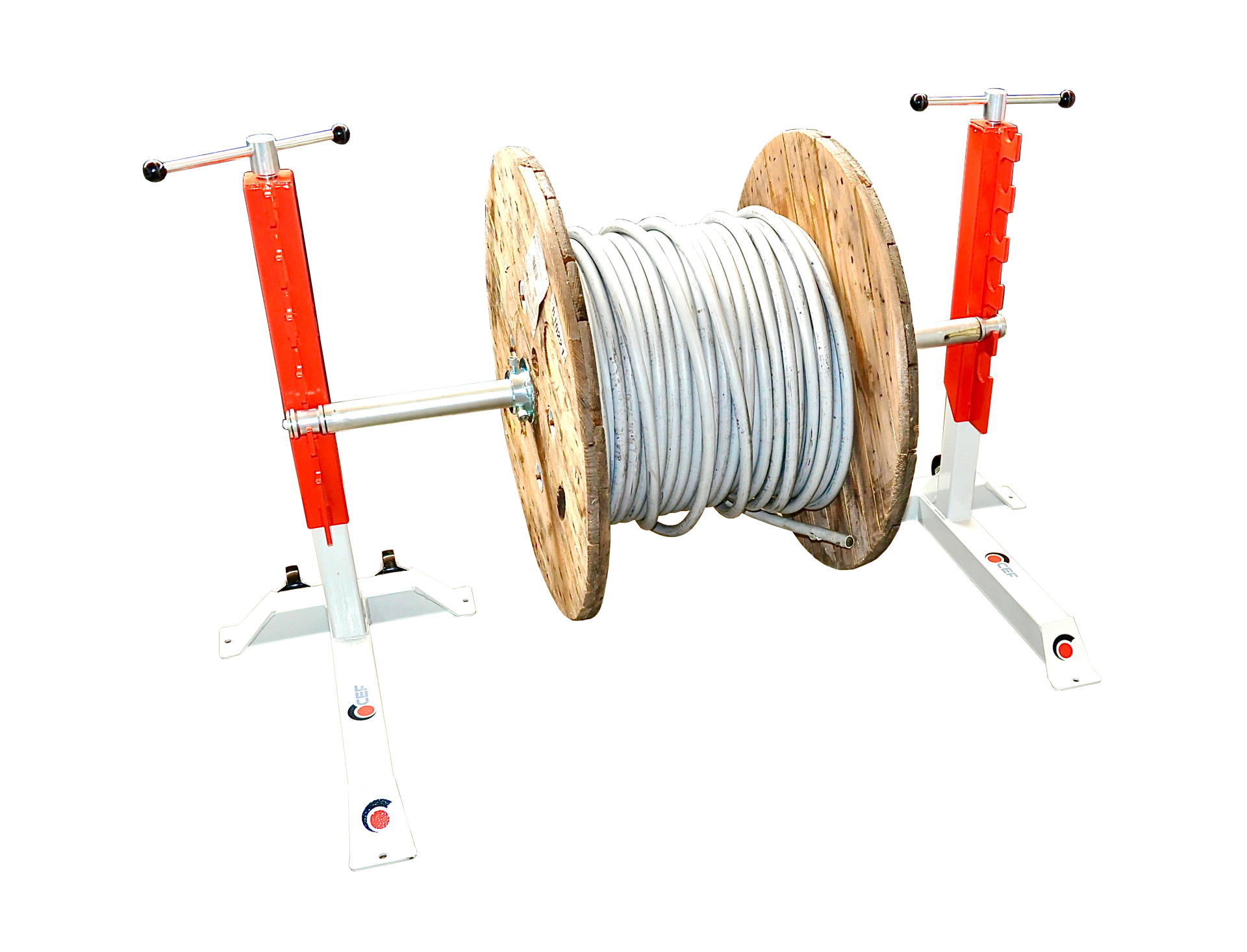

Iron 1600
Pair of jacks for lifting and pay-off of cable drums.
- FRAMES made in high resistant and light steel profiles.
- WHEELS for transport.
- LIFTING SYSTEM with a worm screw
- Steel SHAFT, rotating on bushings with two steel self-centering and resistant drum collars.
TECHNICAL CHARACTERISTICS
| Model | 0550.1600 |
| Dimensions mm | 820 X 800 X 490 |
| Weight KG | 22 |
| Lifting | Screw |
DRUM
| Ø min. mm | 600 |
| Ø max. mm | 1600 |
| Shaft Ø mm | 48 |
| Width min.mm | 280 |
| Width max.mm | 1100 |
| Weight max kg | 1500 |
